Neumann U89i Professional Microphone

Neumann U89i

The U 89 is a universally applicable studio microphone. It contains a double membrane capsule in its wire mesh basket. With five different directional characteristics, the microphone can be easily adapted to large or wide sound bodies and can also be used for recordings at a greater distance from the sound source.

The maximum sound pressure level of 134 dB can be increased to 140 dB with a rotary switch. Another rotary switch is provided for lowering the transmission level below the selectable frequencies 80 Hz or 160 Hz.

With a rotary switch below the capsule basket, in addition to the three common directional characteristics omni, cardioid and figure eight, the hypercardioid and wide cardioid settings can also be selected. The hypercardioid allows sound sources positioned to the right and left of the object to be recorded to be blocked out better than the cardioid, while the wide cardioid is advantageously used for the transmission of extended sound sources.

Characteristics: switchable to ball, cardioid, figure eight

switchable 10 db attenuation

Universally applicable: vocals, speakers, overheads, wind instruments

Transmission range 20 Hz ... 20 kHz

Field transfer factor at 1 kHz at 1 kOhm 8 mV / Pa

Nominal impedance 150 ohms

Nominal load impedance 1000 ohms

Equivalent noise level (CCIR 468-3) 28 dB

Equivalent noise level (DIN / IEC 651) 17 dB-A

Signal-to-noise ratio (CCIR 468-3) 66 dB

Signal-to-noise ratio (DIN / IEC 651) 77 dB

Limit sound pressure level for K <0.5% 134 dB

Limit sound pressure level for K <0.5% with pre-attenuation 140 dB

Maximum output voltage 800 mV

Dynamic range of the amplifier (DIN / IEC 651) 117 dB

Supply voltage 48 V ± 4 V

Current consumption 0.8 mA

Weight 400 g

Diameter 46 mm / length 185 mm

Color black matt

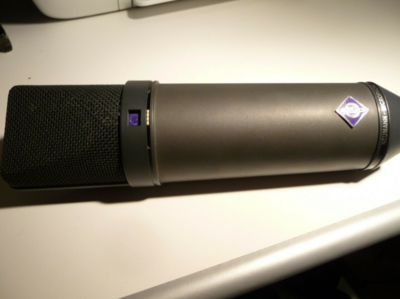

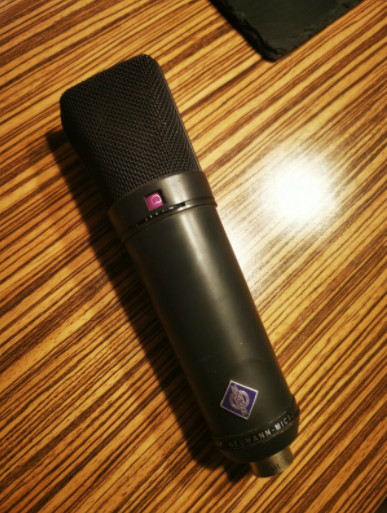

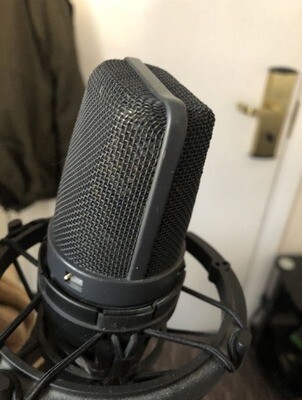

Second hand!

Slight dents - but fully functional!

Private sale, no return, no guarantee;).
